SmCo5 Magnets (1:5)

SmCo5 magnets for compact assemblies that require strong thermal stability and corrosion resistance in demanding environments.

Target Buyer:Best for engineering teams that need compact high-reliability magnets with predictable thermal behavior.

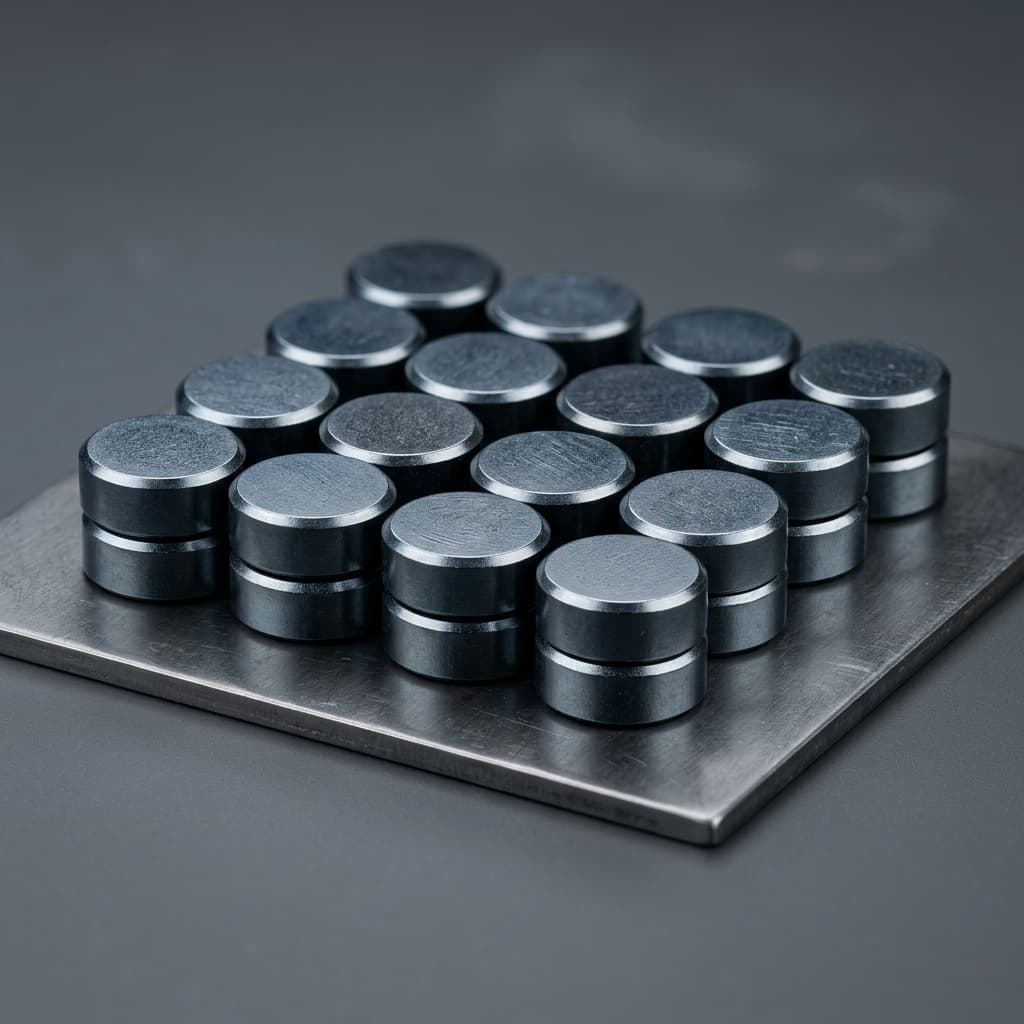

SmCo5 samarium cobalt magnets for high-temperature OEM programs

Capability Highlights

Stable magnetic output under thermal cycling and vacuum-ready assemblies.
High coercivity with low reversible temperature drift for precision modules.
Suitable for ring, disc, and block geometries with controlled tolerances.

Typical Applications

Aerospace sensor modules and attitude-control subsystems
Defense microwave assemblies and precision guidance components
Medical and laboratory instruments with strict thermal drift limits

Engineering Focus

Match Br/Hcj targets to real operating temperature envelope.
Define magnetization direction and assembly retention strategy early.
Plan machining tolerances around SmCo brittleness and edge protection.

Decision Boundary

Use SmCo5 when thermal load is high but still within a controlled range and the assembly needs compact corrosion-resistant magnetic parts with predictable drift.

Go Signals

Continuous temperature profile is stable and peak events are short and documented.
System-level field requirement is met with moderate thermal margin, not extreme headroom.
Geometry and magnetization direction are clear enough for first-sample approval planning.

Hold Signals

Peak-temperature events are uncertain or already near the upper capability limit.
Buyer only provides room-temperature magnetic targets without thermal-duty context.
Tolerance stack and assembly retention method are still undefined.

Buyer Deliverables for First Review

Temperature profile with continuous, peak, and duration windows.
Drawing with tolerance-critical dimensions and magnetization direction.
Sample acceptance criteria for magnetic output and fitment checks.

Key Evaluation Matrix

Metric	Typical Range	Why It Matters
Recommended operating range	-55°C to +250°C	Prevents under-specification when the magnet works near thermal limits.
Thermal coefficient consistency	Low drift under controlled grade window	Critical for sensor repeatability and closed-loop control stability.

RFQ Checklist

Specify target grade and minimum magnetic performance at operating temperature.
Provide geometry, tolerance stack, and magnetization direction drawings.
Share assembly process constraints (bonding, retention, coating limits).
State sample quantity, forecast volume, and required shipment destination.

Risk Controls

Grade mismatch for peak temperature: Cross-check Hcj margin against worst-case temperature and duty profile.
Chipping during machining or assembly: Define edge treatment, handling SOP, and fixture constraints before sampling.

Product Gallery

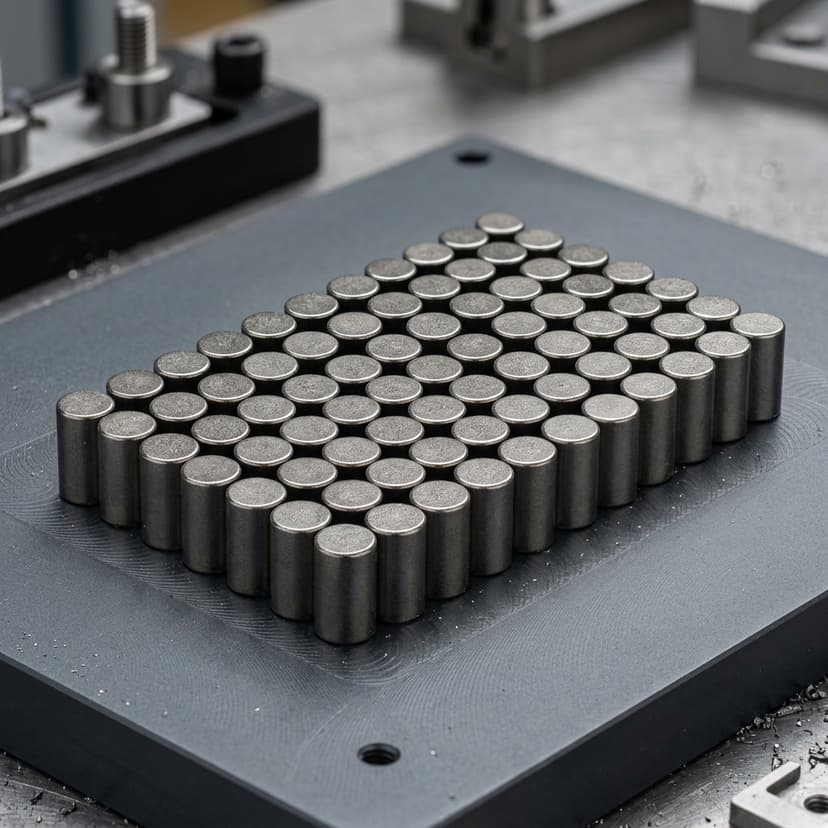

SmCoSupply SmCo5 grade support and OEM customization

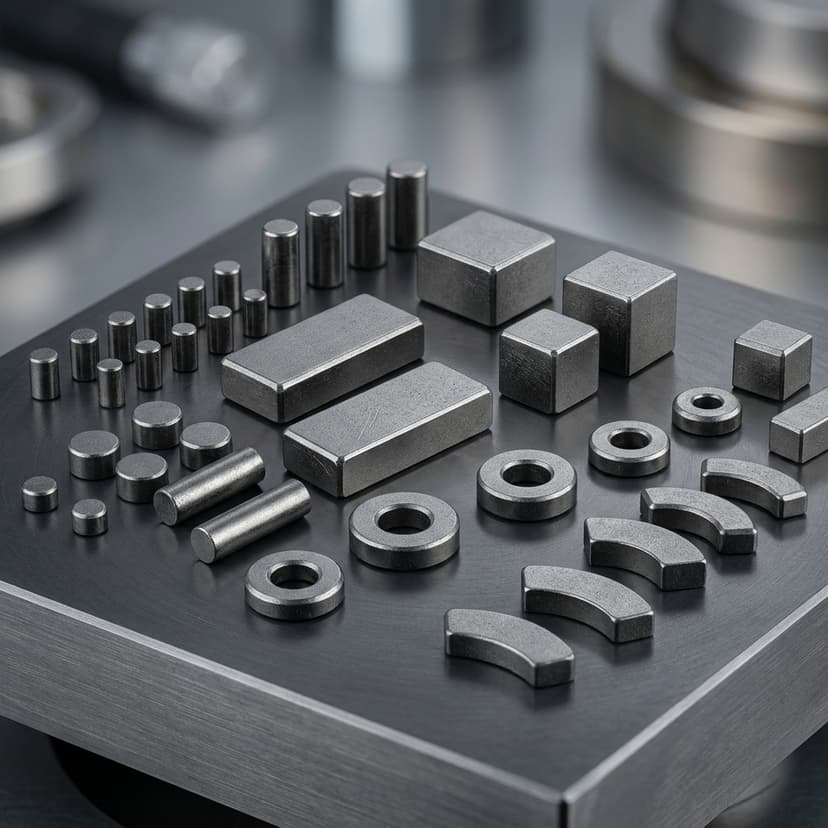

SmCo5 block magnets precision manufacturing

Buyer FAQ

When should we choose SmCo5 over Sm2Co17?

SmCo5 is commonly selected for compact structures and strong corrosion resistance where thermal requirements are high but below the upper range of Sm2Co17 programs.

Can you support custom magnetization orientation?

Yes. Share your drawing and field-direction requirement and we will confirm feasible magnetization direction and process controls.
