SmCo Ring Magnets

Precision SmCo ring magnets for gyroscopes, waveguide structures, and rotating assemblies requiring tight concentricity and field consistency.

Target Buyer:Best for teams that need strict geometric consistency with defined magnetic orientation in ring form factors.

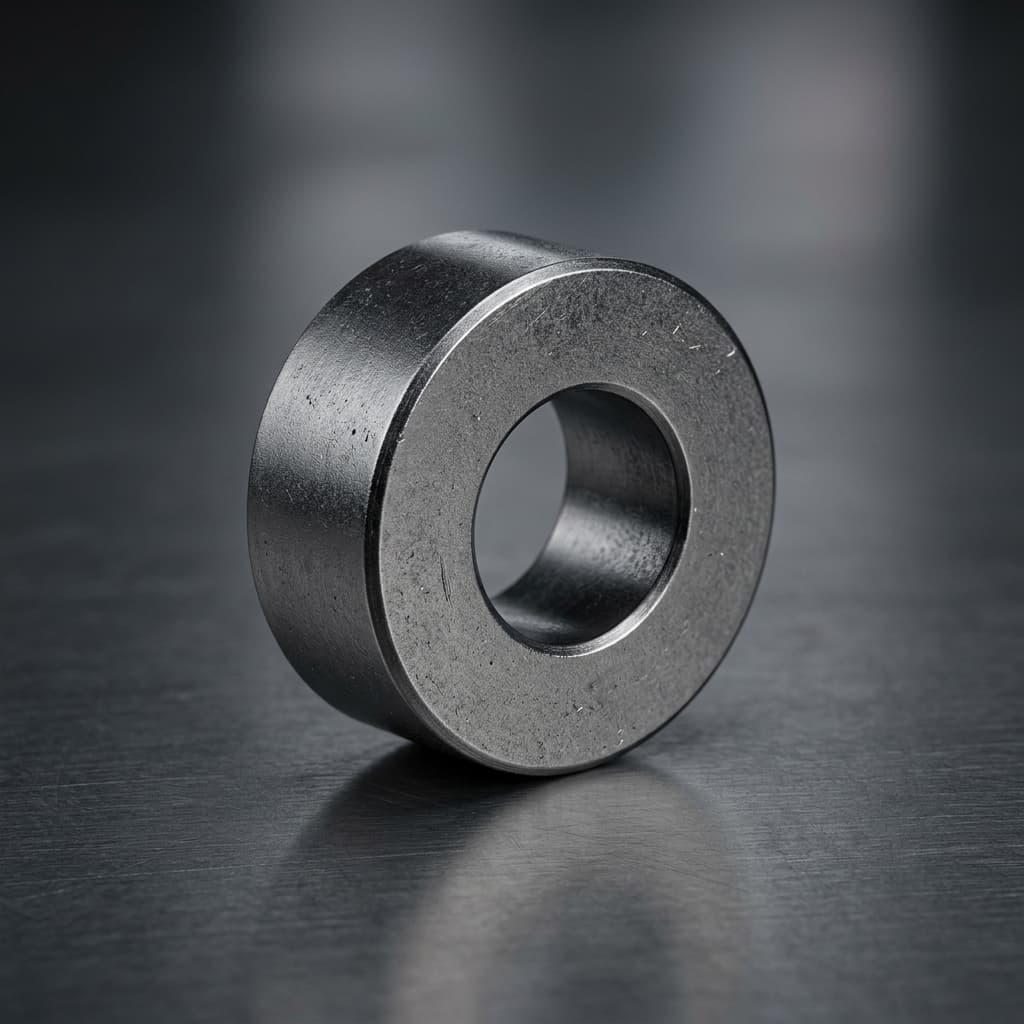

SmCo ring magnets for RF and precision sensor assemblies

Capability Highlights

Concentricity and geometric control for precision rotational systems.
Stable magnetic field performance across wide temperature ranges.
Supports axial and radial magnetization requirements by design review.

Typical Applications

Gyroscopes and inertial measurement assemblies
Traveling wave tube and microwave RF magnetic circuits
High-precision sensor housings and encoder-adjacent modules

Engineering Focus

Control inner/outer diameter tolerance and runout requirements.
Validate magnetization method against assembly field-direction target.
Plan fixture and handling process to protect brittle edge zones.

Decision Boundary

Ring programs succeed when concentricity, runout, and magnetization direction are defined together with magnetic-circuit assumptions, not as separate discussions.

Go Signals

OD/ID/height tolerances are linked to field-symmetry requirements.
Axial or radial magnetization target is frozen before sample kickoff.
Assembly retention constraints are available for fixture review.

Hold Signals

Field-direction requirements are described only verbally, not in drawings.
Runout/concentricity limits are omitted from RFQ.
System team expects final tuning without defining magnet tolerance boundaries.

Buyer Deliverables for First Review

Full ring drawing including GD&T and revision history.
Magnetization orientation and target field window at test condition.
Assembly process constraints for handling, bonding, or mechanical lock.

Key Evaluation Matrix

Metric	Typical Range	Why It Matters
Concentricity capability	Defined per geometry and tolerance stack	Directly impacts field symmetry and system-level repeatability.
Magnetization direction control	Axial or radial by reviewed process route	Prevents integration rework caused by direction mismatch.

RFQ Checklist

Provide OD/ID/height with GD&T requirements and drawing revision.
Specify axial or radial magnetization and field tolerance window.
Share assembly medium and retention method (bonding/mechanical).
List qualification tests needed before production approval.

Risk Controls

Field-distribution mismatch in final assembly: Review system magnetic circuit assumptions and validate early with samples.
Assembly scrap due to tolerance stack drift: Freeze GD&T assumptions and sampling inspection method together.

Product Gallery

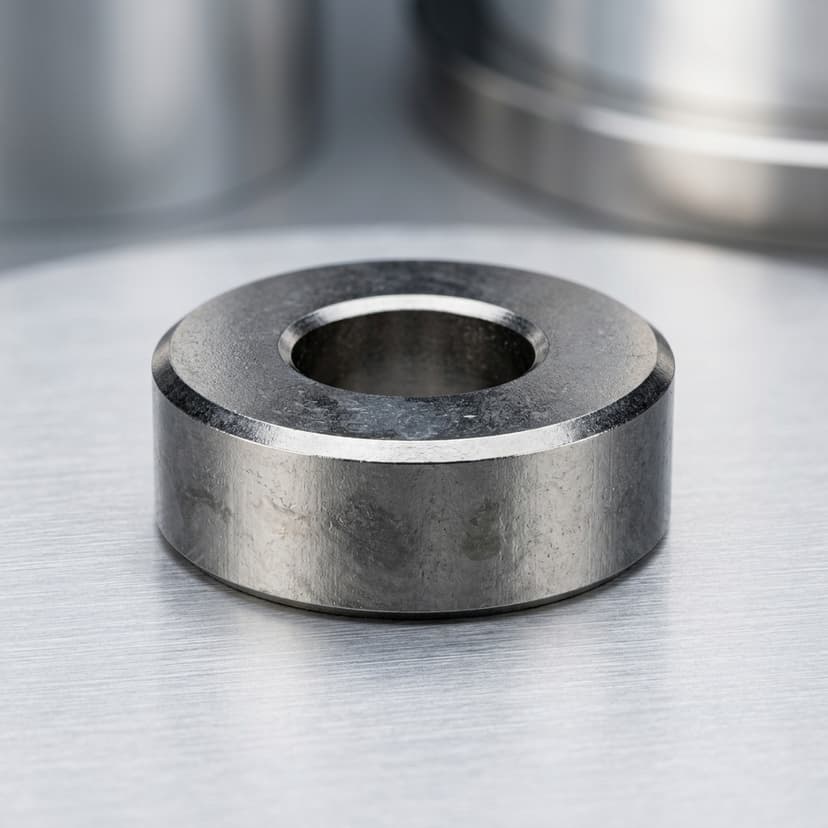

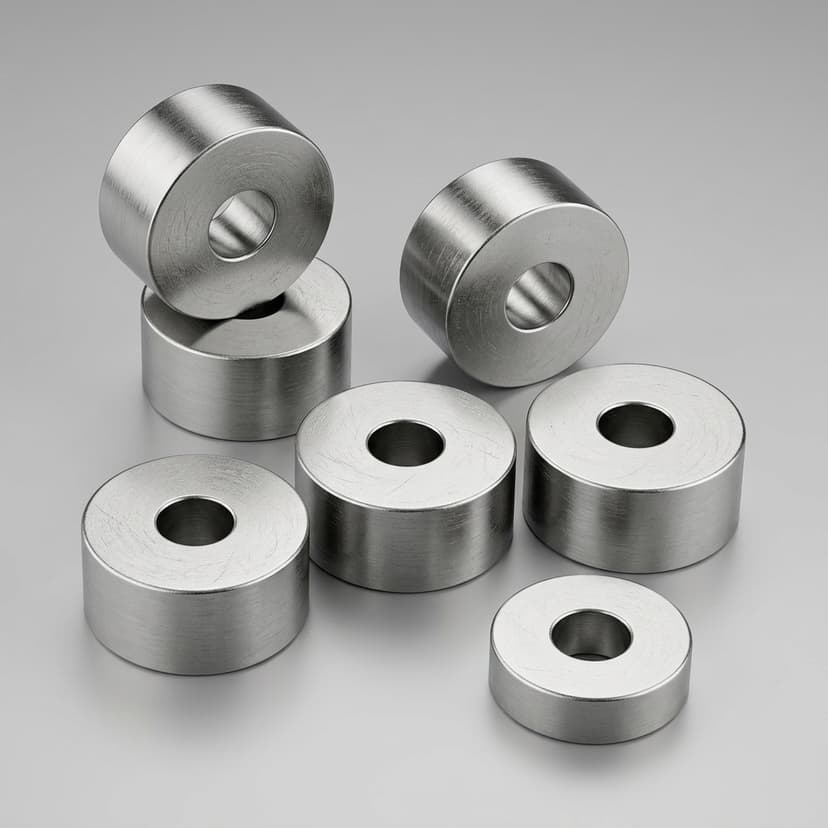

Custom SmCo ring magnet manufacturing in China

Buyer FAQ

Can you produce both small and large SmCo rings?

Yes. We support ring geometries across multiple diameter ranges, subject to tolerance and magnetization feasibility review.

How should we define ring-magnet RFQ data?

Share geometry, magnetization orientation, operating temperature, and assembly constraints in one package for faster feasibility confirmation.
